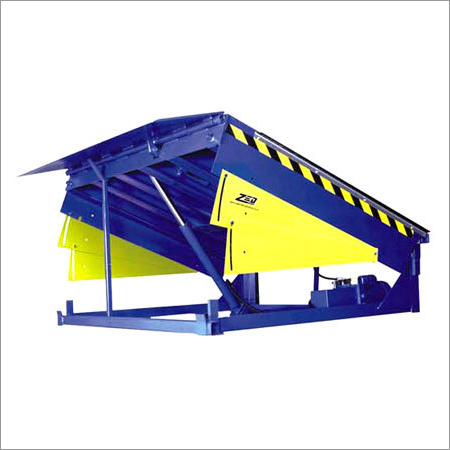

Stationary Hydraulic Dock Leveler

Stationary Hydraulic  Dock Leveler
Stationary Hydraulic Dock Leveler
Product Code : 23
Product Description

  Stationary Hydraulic  Dock Leveler

 Salient Feature

  • Top of Platform will be of MS Chequered Plate of 6 mm thickness.
  • Main structure will be made of heavy gauge MS IMC section & ISMB sections of Standard make. Platform will reinforced suitably by MS ISMC section.
  • All Pivots and pins made of EN 24 grounded will be fitted with large bearing with phosphor bronze bushes and provided with grease nipples at all moving points.
  • Adequate stiffeners will be provided in torsion box between sets to minimize uneven bearing loading to eccentric loading.
  • The Leveler shall be raised or lowered by two single acting hydraulic cylinders.
  • Lip shall be operated by one double acting cylinder fitted in platform itself.
  • Electro Hydraulic Power Pack shall be operated by three phase AC 440V motor and shall be accommodated near the equipment.
  • In case of power failure, top platform will freeze instantaneously.
  • High pressure flexible hose assembly will be double wire.
  • Oil level view glass shall be provided on hydraulic tank.
  • Electric motor will be protected from overload and short circuit by providing suitable motor protection circuit breakers
  • Equipment will be  painted with enamel according to the customer’s demand  with black Zebra bands.
  •

Model No.

Capacity

Lifting Height

Platform Size

NHMDL 6A

6000 kgs.

2150 x 2750 mm

400 mm

NHMDL 8A

8000 kgs.

2440 x 1830 mm

400 mm

NHMDL 10A

10000 kgs.

2440 x 1830 mm

400 mm

NHMDL 12A

12000 kgs.

1800 x 2000 mm

450 mm

NHMDL 14A

14000 kgs.

2000 x 2000 mm

450 mm

NHMDL 16A

16000 kgs.

2000 x 2500 mm

450 mm
